100ah lifepo4 12 volt deep cycle battery for Solar Energy Storage
- Product Description
Lithium Advantages compare with Lead-acid:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
etc..
|
Cells (assembly pack) SPEC |
Model |
Prismatic |
|
|
Capacity |
20Ah |
||
|
Rated voltage（V） |
3.2V |
||
|
Typical Impedance (mΩ) |
≤1.5mΩ |
||
|
Battery material |
LFP |
||
|
Battery Spec |
Combination method |
4 Series 5 Parallel |
|
|
Minimal capacity |
≥100Ah |
||
|
Rated voltage/power |
12.8V/1280W |
||
|
Max. charge voltage |
14.6V |
||
|
Resistance |
≤7mΩ |
||
|
Max continuous charge current |
50A |
||
|
Max continuous discharge current |
100A |
||
|
Peak Discharge Current (for 5s) |
≥300A |
||
|
Weight (Approx.) |
11.5KG |
||
|

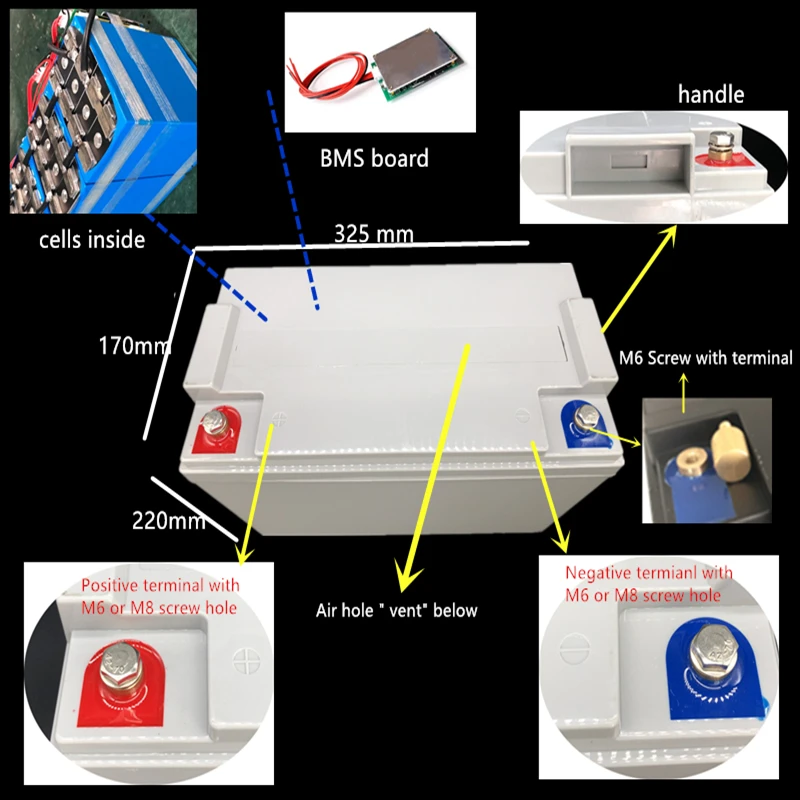

Max. dimension（LtimesWtimesH）(mm) |
325*170*220mm |
||
|
Operating temperature |
Charge temperature |
-0℃～50℃ |
|
|
Discharge temperature |
-20℃～65℃ |
||
|
Protection Board (BMS) |
Single cell over-charge cut-off voltage |
3.85V |
|
|
over-charge release voltage |
3.65V |
||
|
Single cell under-discharge cut-off voltage |
2.3V |
||
|
Discharge release voltage |
2.5V |
||
|
Over-discharge cut-off current |
300A |
||
|
Over-discharge cut-off current delay |
5S |
||
|
Short-circuit protection |
Yes |
||
|
Short-circuit protection delay |
500uS |
||
|
Condition for the recovery of over-current and Short-circuit |
Self |
||
|
Balance current |
45mA |
||
|
Balance Condition |
3.60V |
||
|
communication |
NO |
||

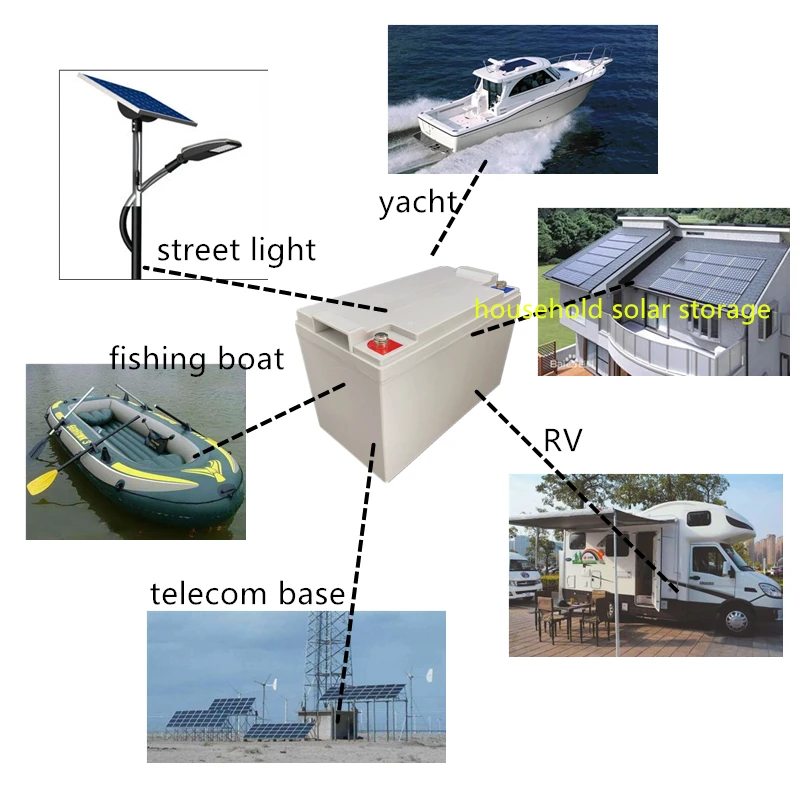

Applications of such battery :
More Details explain according Photos
About Prices : Dear Customers ,if you wanna to be our long business partner , you can share your email box , whatapps,skype ,facebook etc.
Tips:
- we usually send out battery by international commercial express, UPS ,FedEx ;but now battery belong to some dangerous goods in some countries , so we send them by special line .
- It takes 5-10 days by express send to destination ( not including the Lead Time ) ,if send by special line may takes more than 20 days .
3. Battery goods belong to sensitive items , we produce the best battery , so welcome customer come to our factory
