Product Description

Model	24S1P
Nominal voltage	72V
Charge voltage	87.6V
Nominval capacity	100Ah
Discharge cut off voltage	55.2V
Charge method	CC/CV
Battery type	LifePO4 battery cell
Single LifePO4 battery	3.2V 100Ah
Battery configation	24S1P
Standard charge current	20A
Continuous discharge current	100A
Peak discharge current	200A/10S

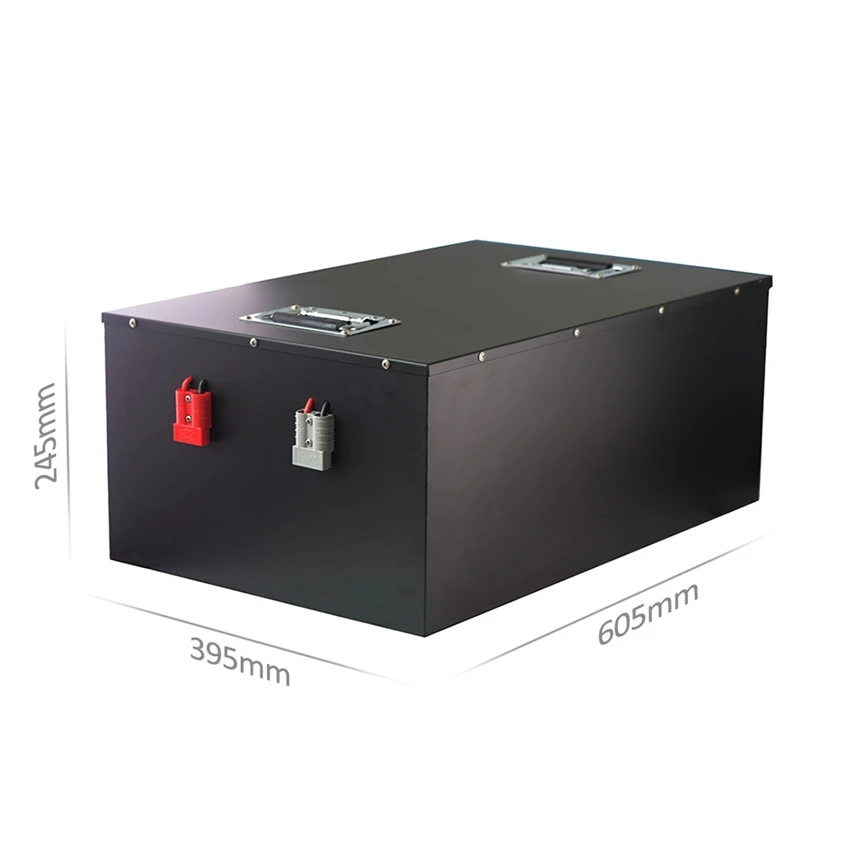

Casing dimension	605*395*245mm(L*W*H)
Net weight	around 65KG
Casing color	black
BMS protection	over-charge,over-discharge,over-current,short circuit
Lifecycle	1500-2000 times
Warranty	2 years
Charge temperature	0~45℃
Discharge temperature	-10~55℃
Storage temperature	-10~45℃



Advantages:

1) Lithium iron phosphate battery cell with  high capacity, light weight, high consistency, high security.

2) LiFePO4 battery cell with long cycle life > 2000 times.

3) No memory effect, environmental friendly

4) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.

5) Lithium battery cells can be combined in series to increase voltage and parallel to increase capacity.



Applications:



1. Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, military flashlight, high-end flashlight, high power flashlight, brightflashlight.
2. Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight,
3. Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player, speaker, microphone, sound equipments, audio, Digital camera, vidican.
4. Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes, electric blanket.Medical devices
5. Instruments and meters: water meter, gas meter.
6. Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor
7. Power tools: electric drill, mower
8. UPS, GPS and etc.



Our Services

1. OEM and ODM available

2. All of your inquiry or emails will be replied within 12 hours

3. Our professional sales team and engineers team can provide you one stop battery solution

4. We can help you to track the shipping status so that you can receive the goods timely

5. All of the battery packs and accessoreis will be tested before shipment

6. If any quality problem,we can replace new items for you
